Click the link below and save the JMP file to your Desktop.
Now go to your Desktop and double click on the JMP file you just downloaded.
This action will start JMP and display the content of this file:
Click the Graph menu, go to Legacy and select Chart:

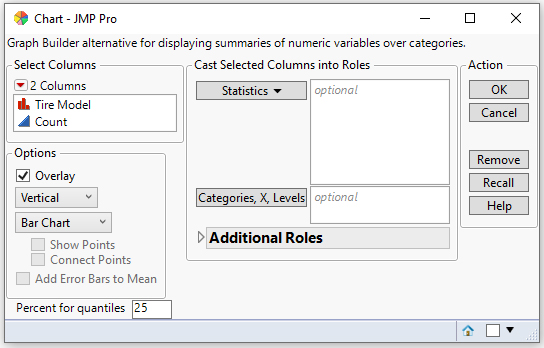

You will see the following dialog box:
Click on the down arrow next to Bar Chart and select Pie Chart.
Click the column Tire Model, then click the Categories, X, Levels button.
Click the column Count, then click the down arrow next to Statistics and select Data.

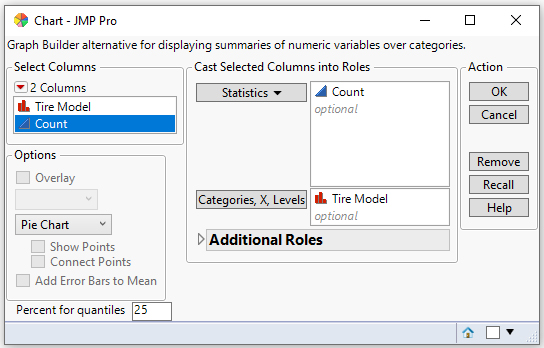

Your screen should now look similar to the following:
Click OK.
The Pie Chart is displayed:
This image is useless without the legend, indicating which slice is which tire brand. Click the red down arrow next to Graph Builder, select Show, then Legend. You should now see the following:

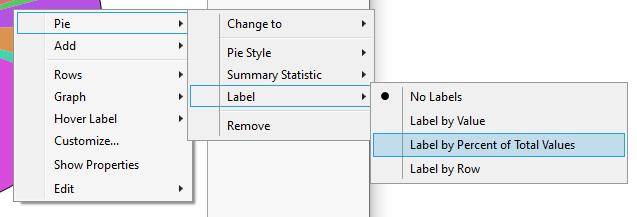

If you wish to display the percent each "slice" of the pie accounts for, right click on the image of the pie, select Pie, Label, then Label by Percent of Total Values:

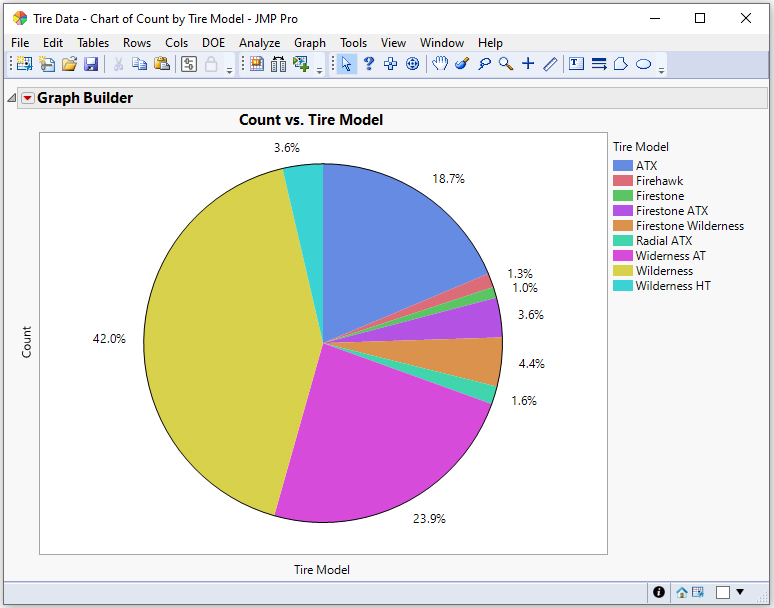

You should see the following:
Unaggregated Data
Click the link below and download the following JMP file to your desktop:
Double click the file to open it. Notice there is only 1 column with 871 rows:

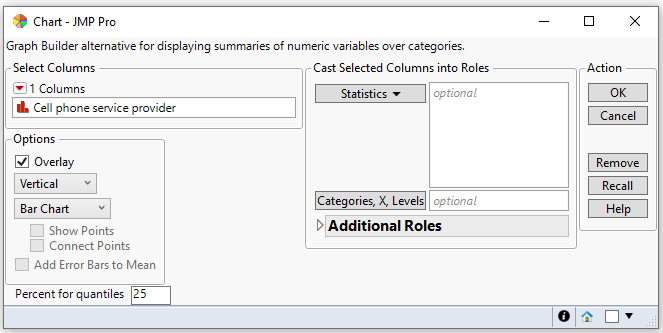

Click the Graph menu, go to Legacy and select Chart. You will see the following:
Click on the down arrow next to Bar Chart and select Pie Chart.
Click
on the column Cell phone service provider and then click on Categories, X,
Levels.
Click OK.
The Pie Chart is displayed:
If you wish to display the percent each "slice" of the pie accounts for, right click on the image of the pie, select Pie, Label, then Label by Percent of Total Values:
(Based on JMP Pro 16.0.0 Revised 7/6/2021)
